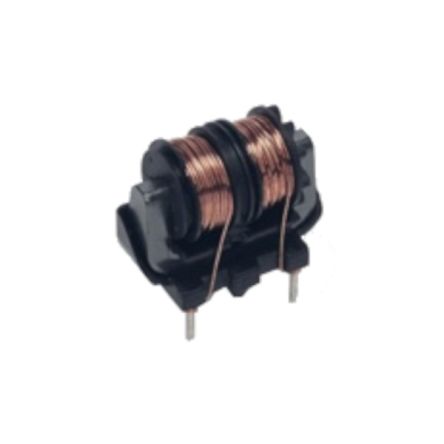

47.5 mH 2 KEMET SSR Common Mode Choke [SSR10V-06475]; 183-6493
by KEMET
0₫
Mã kho: 1836493
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 47.5 mH |
| Series | SSR |
| Test Frequency | 10 kHz |
| DC Resistance | 1.3Ω |
| Maximum Current | 600 mA |
| Dimensions | 23.5 x 13 x 21mm |
| Operating Temperature Range | -25 → +120 °C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Termination Style | Solder Pad |
| Depth | 13mm |
| Minimum Operating Temperature | -25°C |
| Length | 23.5mm |
| Maximum Operating Temperature | +120°C |
| Height | 21mm |
