![KEMET SHBC13-1R2A0045V 1836826](http://nguyenxuong.com/cdn/shop/products/Y1836826-01_444x444.jpg?v=1594396283)

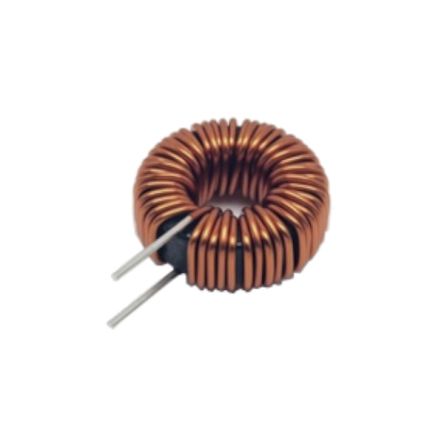

45 μH 2 KEMET SHBC Common Mode Choke [SHBC13-1R2A0045V]; 183-6826
by KEMET
0₫
Mã kho: 1836826
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 45 μH |
Series | SHBC |
Test Frequency | 100 kHz |
DC Resistance | 18.3mΩ |
Maximum Current | 0.25 |
Dimensions | 30 Dia. x 14.9mm |
Operating Temperature Range | -40 → +125 °C |
Number of Lines | 2 |
Mounting Type | Through Hole |
Termination Style | Solder Pad |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -40°C |
Depth | 30 Dia.mm |
Height | 14.9mm |
