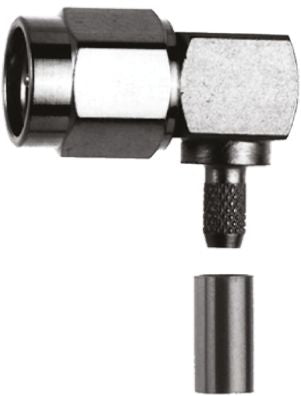

Telegartner Right Angle 50Ω Cable Mount SMA Connector, Crimp Termination RG142 B/U, RG223/U, RG400/U [J01150A0081]; 712-3210
by Telegartner
0₫
Mã kho: 7123210
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Male |
| Coaxial Connector Type | SMA Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Right Angle |
| Cable Type | RG142 B/U, RG223/U, RG400/U |
| Bulkhead | No |
| Operating Frequency | 0 → 12.4GHz |
| Body Plating | Gold |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | 165°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Copper Nickel Gold Alloy |
