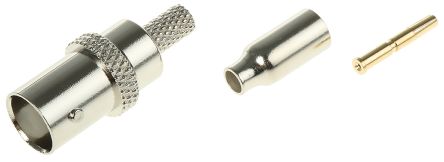

TE Connectivity Straight 50Ω Cable Mount BNC Connector, jack, Nickel, Crimp Termination, RG174 A/U, RG188 A/U, RG316/U [5-1634511-1]; 161-3766
0₫
Mã kho: 1613766
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG174 A/U, RG188 A/U, RG316/U |
| Bulkhead | No |
| Operating Frequency | 0 → 4GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel over Copper |
