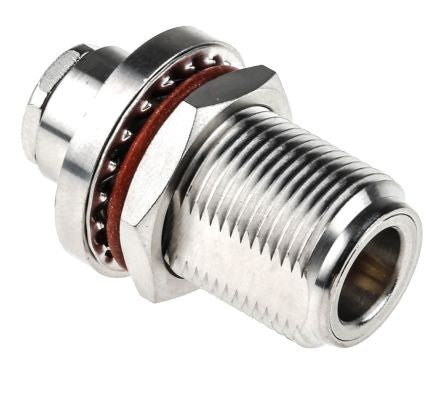

Radiall 50Ω Straight Panel Mount N Type Connector, jack, Clamp Termination, 0 → 11GHz [R161325000W]; 295-6860
by Radiall
0₫
Mã kho: 2956860
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Coaxial Connector Type | N Connector |
| Mounting Type | Panel Mount |
| Impedance | 50Ω |
| Termination Method | Clamp |
| Body Orientation | Straight |
| Cable Type | RG141, RG142, RG223, RG400, RG58 |
| Operating Frequency | 0 → 11GHz |
| Body Plating | Bronze |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 155°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
