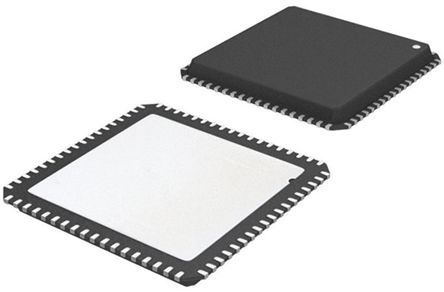

AD9523-1BCPZ, PLL Clock Generator Dual, 72-Pin LFCSP VQ [AD9523-1BCPZ]; 804-9895
0₫
Mã kho: 8049895
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Elements per Chip | 2 |
Maximum Supply Current | 75.8 mA |
Mounting Type | Surface Mount |
Package Type | LFCSP VQ |
Pin Count | 72 |
Dimensions | 10 x 10 x 0.95mm |
Length | 10mm |
Width | 10mm |
Height | 0.95mm |
Maximum Operating Supply Voltage | 3.465 V |
Maximum Operating Temperature | +85 °C |
Maximum Output Frequency | 1GHz |
Minimum Operating Supply Voltage | 3.135 V |
Minimum Operating Temperature | -40 °C |
Minimum Output Frequency | 1MHz |
