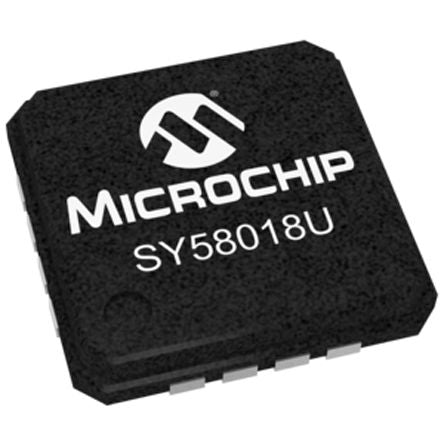

SY58018UMG, Clock Distribution Circuit LVPECL, 2-Input, 16-Pin MLF [SY58018UMG]; 146-0317
by Microchip
0₫
Mã kho: 1460317
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Signal Type | CML, LVDS, PECL |
| Output Logic Level | LVPECL |
| Operation Mode | Differential |
| Number of Clock Inputs | 2 |
| Mounting Type | Surface Mount |
| Package Type | MLF |
| Pin Count | 16 |
| Dimensions | 3 x 3 x 0.85mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.85mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.375 V |
| Maximum Operating Temperature | +85 °C |
