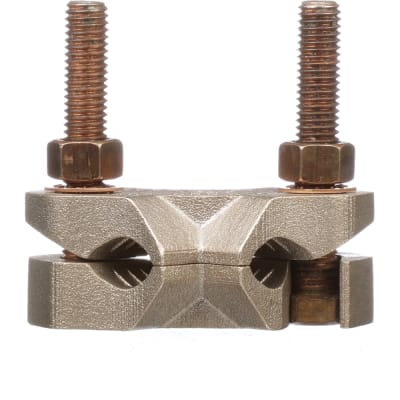

Panduit Mechanical Grounding Cross Connector For Wire Ranges #4 - 2/0 AWG to Wire Ranges 2/0 AWG - 250 kcmil or 1/2" Rod [GXC250-2/0]; PAL965

Name: Panduit Mechanical Grounding Cross Connector For Wire Ranges #4 - 2/0 AWG to Wire Ranges 2/0 AWG - 250 kcmil or 1/2" Rod [GXC250-2/0]; PAL965
Brand: Panduit
SKU: PAL965
Price: 4910500.0 VND
Availability: InStock

by Panduit

4.910.500₫

(Giá chưa VAT).

Mã kho: PAL965

Mã nhà sản xuất: GXC250-2/0

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GXC250-2/0

MÔ TẢ SẢN PHẨM

Mechanical Grounding Cross Connector For Wire Ranges #4 - 2/0 AWG to Wire Ranges 2/0 AWG - 250 kcmil or 1/2" Rod

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	2/0 -4/0 SOL & 2/0 STR-250 kcmil Run, #4-2/0 STR/SOL Tap
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Ground Rod Size (In.)	0.5
Number Of Wires	2
Overall Length (In.)	2.33
Overall Length (mm)	59.3
Overall Width (In.)	2.88
Overall Width (mm)	73.3
Overall Height (In.)	2.74
Overall Height (mm)	69.5
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16"
Application	Utility/Ground Grid
Standards Met	cULus 486 & 467 Listed for Power & Grounding, DB Rated
Product Type	Grounding mechanical connector
