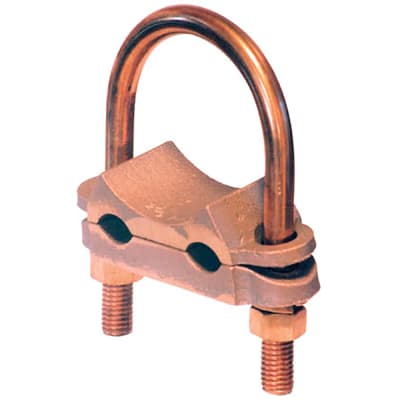

Panduit Bronze grounding clamp, type GU, .204-.419" wire dia. range, 1" IPS. [GU-2-X]; PAL956

Name: Panduit Bronze grounding clamp, type GU, .204-.419" wire dia. range, 1" IPS. [GU-2-X]; PAL956
Brand: Panduit
SKU: PAL956
Price: 3595500.0 VND
Availability: InStock

by Panduit

3.595.500₫

(Giá chưa VAT).

Mã kho: PAL956

Mã nhà sản xuất: GU-2-X

Đơn vị tính: PC

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GU-2-X

MÔ TẢ SẢN PHẨM

Bronze grounding clamp, type GU, .204-.419" wire dia. range, 1" IPS.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze/Silicon Bronze
Ground Rod Size (In.)	0.75
Iron Pipe Size (In.)	1
Overall Length (In.)	2.75
Overall Length (mm)	70
Overall Width (In.)	1.13
Overall Width (mm)	28.6
Overall Height (In.)	3.25
Overall Height (mm)	82.6
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16
Standards Met	cULus Listed 467, DB Rated
Product Type	Bronze grounding Clamp,U-Bolt, for two cables
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.
