Panduit Pipe Clamp; 2 Wires: 2/0 - 250 kcmil Parallel with Pipe or Rod; Direct Burial, 2-1/2" Pipe [GU-16P-3]; PAL955

Name: Panduit Pipe Clamp; 2 Wires: 2/0 - 250 kcmil Parallel with Pipe or Rod; Direct Burial, 2-1/2" Pipe [GU-16P-3]; PAL955
Brand: Panduit
SKU: PAL955
Price: 5066500.0 VND
Availability: InStock

by Panduit

5.066.500₫

(Giá chưa VAT).

Mã kho: PAL955

Mã nhà sản xuất: GU-16P-3

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GU-16P-3

MÔ TẢ SẢN PHẨM

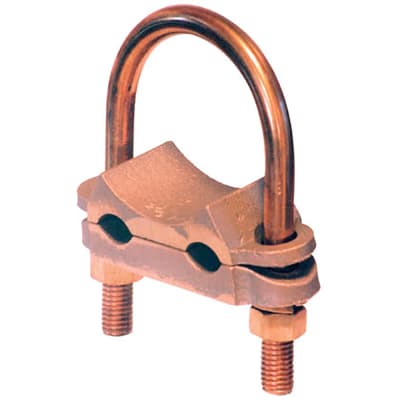

Pipe Clamp; 2 Wires: 2/0 - 250 kcmil Parallel with Pipe or Rod; Direct Burial, 2-1/2" Pipe

_THÔNG SỐ KỸ THUẬT:

Material	Bronze
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG STR)	2/0
Iron Pipe Size (In.)	2.5
Number Of Wires	2
Overall Length (In.)	3.38
Overall Length (mm)	86
Overall Width (In.)	4.25
Overall Width (mm)	108
Overall Height (In.)	4.94
Overall Height (mm)	125.5
Bolt Diameter (In.)	3/8
Clamp Tightening Torque (in·lb)	180
Hex Size (In.)	9/16
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Product Type	Ground Clamp
