Panduit Bronze Ground Clamp Connector, 2/0 AWG- 250 kcmil Str. copper wire to 5" IPS [GPL-70-1]; PAL813

Name: Panduit Bronze Ground Clamp Connector, 2/0 AWG- 250 kcmil Str. copper wire to 5" IPS [GPL-70-1]; PAL813
Brand: Panduit
SKU: PAL813
Price: 6821100.0 VND
Availability: InStock

by Panduit

6.821.100₫

(Giá chưa VAT).

Mã kho: PAL813

Mã nhà sản xuất: GPL-70-1

Đơn vị tính: FT

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-70-1

MÔ TẢ SẢN PHẨM

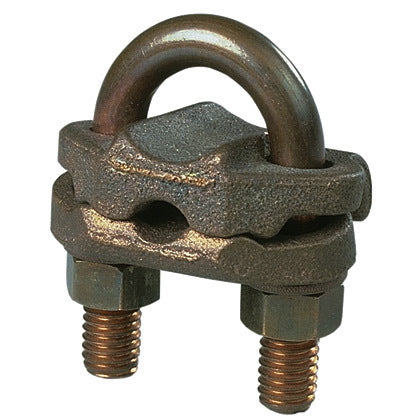

Bronze Ground Clamp Connector, 2/0 AWG- 250 kcmil Str. copper wire to 5" IPS

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	NA
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	2/0
Minimum Copper Conductor Size (AWG)	NA
Iron Pipe Size (In.)	5
Number Of Wires	1
Overall Length (In.)	6.89
Overall Length (mm)	175
Overall Width (In.)	1.97
Overall Width (mm)	50
Overall Height (In.)	7.85
Overall Height (mm)	199
Bolt Diameter (In.)	3/8
Hex Size (In.)	NA
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp
