Panduit Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 5" IPS [GPL-68-1]; PAL811

Name: Panduit Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 5" IPS [GPL-68-1]; PAL811
Brand: Panduit
SKU: PAL811
Price: 8717900.0 VND
Availability: InStock

by Panduit

8.717.900₫

(Giá chưa VAT).

Mã kho: PAL811

Mã nhà sản xuất: GPL-68-1

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-68-1

MÔ TẢ SẢN PHẨM

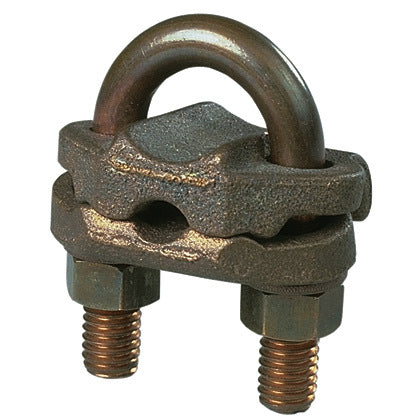

Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 5" IPS

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	4
Maximum Copper Conductor Size (AWG)	NA
Minimum Copper Conductor Size (AWG SOL)	8
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Iron Pipe Size (In.)	5
Number Of Wires	1
Overall Length (In.)	6.85
Overall Length (mm)	174
Overall Width (In.)	1.06
Overall Width (mm)	27
Overall Height (In.)	5.61
Overall Height (mm)	142
Bolt Diameter (In.)	3/8
Hex Size (In.)	NA
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp
