Panduit Bronze grounding clamp, .365-.575" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-6-Q]; PAL810

Name: Panduit Bronze grounding clamp, .365-.575" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-6-Q]; PAL810
Brand: Panduit
SKU: PAL810
Price: 1541500.0 VND
Availability: InStock

by Panduit

1.541.500₫

(Giá chưa VAT).

Mã kho: PAL810

Mã nhà sản xuất: GPL-6-Q

Đơn vị tính: FT

Quy cách đóng gói: 25

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-6-Q

MÔ TẢ SẢN PHẨM

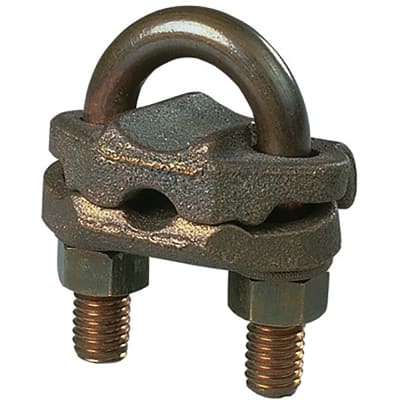

The GPL-6-Q Grounding Clamp, Bronze is used to ground copper conductors parallel or at a right angle to a rod, tube or pipe. The high strength silicon bronze hardware provides long term reliable assembly which accommodates a wide range of pipe, tube, rod, and conductor sizes. Meets cULus 467 listed

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround™
Material	Copper Alloy
Maximum Compatible Conductor Size (kcmil)	250
Minimum Compatible Conductor Size (AWG SOL)	2/0
Overall Length (In.)	2
Overall Length (mm)	50.8
Overall Width (In.)	1.88
Overall Width (mm)	47.8
Application	Utility/Ground Grid
Overall Height (In.)	2.75
Overall Height (mm)	69.9
Standards Met	cULus Listed 467, DB Rated
Product Type	Bronze Grounding Clamp, U-Bolt, single cable
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.
