Panduit Bronze grounding clamp, .204-.419" wire dia. range, 3" IPS. [GPL-45-1]; PAL800

Name: Panduit Bronze grounding clamp, .204-.419" wire dia. range, 3" IPS. [GPL-45-1]; PAL800
Brand: Panduit
SKU: PAL800
Price: 4419200.0 VND
Availability: InStock

by Panduit

4.419.200₫

(Giá chưa VAT).

Mã kho: PAL800

Mã nhà sản xuất: GPL-45-1

Đơn vị tính: FT

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-45-1

MÔ TẢ SẢN PHẨM

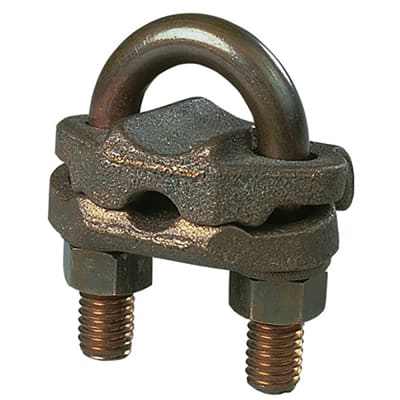

Bronze grounding clamp, .204-.419" wire dia. range, 3" IPS.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze/Silicon Bronze
Iron Pipe Size (In.)	3
Overall Length (In.)	4.75
Overall Length (mm)	120.6
Overall Width (In.)	1.63
Overall Width (mm)	41.4
Overall Height (In.)	5.5
Overall Height (mm)	139.7
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16
Standards Met	cULus Listed 467, DB Rated
Surface Treatment	Galvanic/electrolytic zinc plated
Product Type	Bronze Grounding Clamp, U-Bolt, single cable
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.
