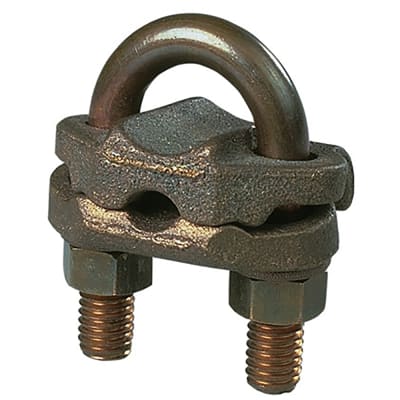

Panduit Bronze grounding clamp, .128-.232" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-4-Q]; PAL796

Name: Panduit Bronze grounding clamp, .128-.232" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-4-Q]; PAL796
Brand: Panduit
SKU: PAL796
Price: 1472300.0 VND
Availability: InStock

by Panduit

1.472.300₫

(Giá chưa VAT).

Mã kho: PAL796

Mã nhà sản xuất: GPL-4-Q

Đơn vị tính: FT

Quy cách đóng gói: 25

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-4-Q

MÔ TẢ SẢN PHẨM

Bronze grounding clamp, .128-.232" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze/Silicon Bronze
Ground Rod Size (In.)	0.75
Iron Pipe Size (In.)	3/8
Overall Length (In.)	2
Overall Length (mm)	50.8
Overall Width (In.)	1.38
Overall Width (mm)	35.1
Overall Height (In.)	2.75
Overall Height (mm)	69.9
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16
Standards Met	cULus Listed 467, DB Rated
Surface Treatment	Galvanic/electrolytic zinc plated
Product Type	Bronze Grounding Clamp, U-Bolt, single cable
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.
