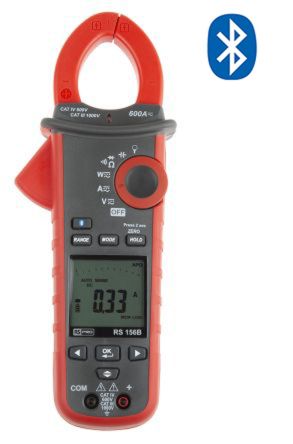

RS PRO 156B Bluetooth Clamp Meter, Max Current 600A ac, 600A dc CAT III 1000 V, CAT IV 600 V; 162-4456
by RS PRO
0₫
Mã kho: 1624456
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 600A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 100kΩ |
| Connectivity | Bluetooth |
| Model Number | 156B |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.7% rdg + 2dgts) |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | Alkaline, 1.5 V AAA |
| Width | 103mm |
| Length | 243mm |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 243 x 103 x 55mm |
| Absolute Maximum Temperature Measurement | +1000°C |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Best Resistance Measurement Accuracy | ±1 + 5 Digits % |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| True RMS | Yes |
| Minimum Operating Temperature | 0°C |
| Height | 55mm |
| Maximum Conductor Size | 33 Dia.mm |
| Display Type | Bar Graphs, LED |
| Maximum Operating Temperature | +50°C |
| Battery Life | 50 h |
| Jaw Capacity Busbars | 33mm |
| Weight | 540g |
| Safety Category Level | CAT III, CAT IV |
| Non-Contact Voltage Detector | Yes |
| Power Source | Battery |
