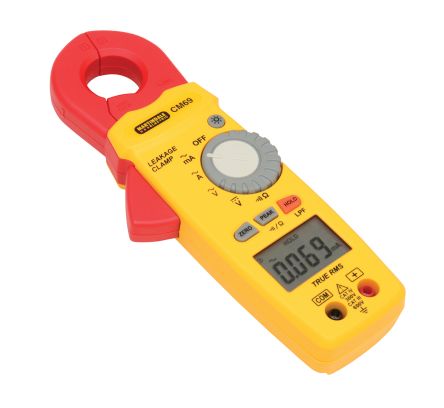

Martindale CM69 Clamp Meter, Max Current 60A ac CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600 V [CM69]; 122-5531
by Martindale
0₫
Mã kho: 1225531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 60A ac |
| Absolute Maximum AC Voltage Measurement | 300V ac |
| Absolute Maximum DC Voltage Measurement | 300V dc |
| Absolute Maximum Resistance Measurement | 600kΩ |
| Model Number | CM69 |
| AC Current Measurement Resolution | 1µA |
| Clamp Meter Type | Leakage Current Clamp |
| Best AC Current Accuracy | ±(1% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Maximum Conductor Size | 20mm |
| AC Voltage Measurement Resolution | 10mV |
| Height | 33.5mm |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Resistance |
| Minimum Operating Temperature | 0°C |
| True RMS | Yes |
| DC Voltage Measurement Resolution | 10mV |
| Dimensions | 206 x 76 x 33.5mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 206mm |
| Width | 76mm |
| Power Source | Battery |
| Safety Category Voltage | 300 V, 600 V, 1000 V |
| Battery Type | AAA, Alkaline, 1.5 V |
| Battery Life | 40 h @ AC, 60 h @ DC |
| Jaw Capacity Busbars | 20mm |
| Weight | 262g |
| Safety Category Level | CAT II, CAT III, CAT IV |
| Safety Category | CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600 V |
| Best Resistance Measurement Accuracy | 1 % + 2 Digits |
| Display Type | Backlit LCD |
| Maximum Operating Temperature | +40°C |
