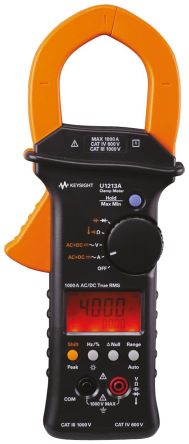

Keysight Technologies U1213A Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V [U1213A]; 698-7192
0₫
Mã kho: 6987192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 1kA ac |
| Absolute Maximum DC Current Measurement | 1kA dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Connectivity | Bluetooth compatible |
| Model Number | U1213A |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1.5% rdg + 3dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.2% rdg + 5dgts) |
| Power Source | Battery |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±2% + 5 Digits |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | 9V |
| Length | 260mm |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 1mV |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Duty Cycle, Frequency, Peak Hold, Resistance, Temperature |
| Maximum Conductor Size | 52mm |
| Jaw Capacity Busbars | 52mm |
| Absolute Maximum Temperature Measurement | +1372°C |
| Temperature Measurement Resolution | 0.1°C |
| Maximum Operating Temperature | +50°C |
| Safety Category Voltage | 600 V, 1000 V |
| Safety Category Level | CAT IV, CAT lll |
| Weight | 525g |
| Battery Life | 60 h |
| AC Voltage Measurement Resolution | 1mV |
| Height | 43mm |
| Minimum Operating Temperature | -10°C |
| True RMS | Yes |
| Best Temperature Measurement Accuracy | ±1% + 1 °C |
| Dimensions | 260 x 106 x 43mm |
| Width | 106mm |
