![Keysight Technologies U1212A 6987199](http://nguyenxuong.com/cdn/shop/products/R6987199-01_187x445.jpg?v=1594018092)

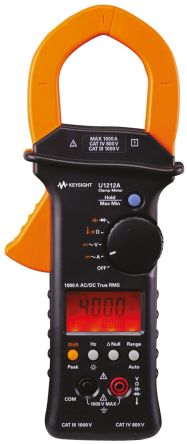

Keysight Technologies U1212A Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V [U1212A]; 698-7199
0₫
Mã kho: 6987199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Absolute Maximum AC Current Measurement | 1kA ac |
Absolute Maximum DC Current Measurement | 1kA dc |
Absolute Maximum AC Voltage Measurement | 1000V ac |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum Resistance Measurement | 4kΩ |
Connectivity | Bluetooth compatible |
Model Number | U1212A |
AC Current Measurement Resolution | 10mA |
DC Current Measurement Resolution | 10mA |
Best DC Current Accuracy | ±(1.5% rdg + 3dgts) |
Clamp Meter Type | Multifunction Clamp |
Best AC Current Accuracy | ±(2% rdg + 5dgts) |
Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
Best DC Voltage Accuracy | ±(0.5% rdg + 3dgts) |
Display Type | LCD |
Best Resistance Measurement Accuracy | ±0.5% + 3 Digits |
Length | 260mm |
Safety Category | CAT III 1000 V, CAT IV 600 V |
Resistance Measurement Resolution | 100mΩ |
Safety Category Level | CAT IV, CAT lll |
DC Voltage Measurement Resolution | 100mV |
Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Peak Hold, Resistance, Temperature |
Width | 106mm |
Dimensions | 260 x 106 x 43mm |
Best Temperature Measurement Accuracy | ±1% + 1 °C |
True RMS | Yes |
Battery Type | 9V |
Safety Category Voltage | 600 V, 1000 V |
Minimum Operating Temperature | -10°C |
Height | 43mm |
AC Voltage Measurement Resolution | 100mV |
Battery Life | 60 h |
Weight | 525g |
Power Source | Battery |
Maximum Operating Temperature | +50°C |
Maximum Conductor Size | 52mm |
Temperature Measurement Resolution | 0.1°C |
Absolute Maximum Temperature Measurement | +1372°C |
Jaw Capacity Busbars | 52mm |
