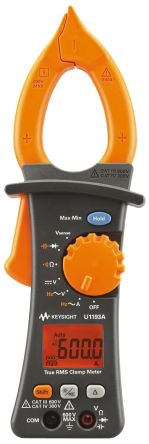

Keysight Technologies U1193A Clamp Meter, Max Current 600A ac CAT III 600 V, CAT IV 300 V [U1193A]; 746-7116
0₫
Mã kho: 7467116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Absolute Maximum AC Current Measurement | 600A ac |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum Resistance Measurement | 60kΩ |
Model Number | U1193A |
AC Current Measurement Resolution | 10mA |
Clamp Meter Type | Multifunction Clamp |
Best AC Current Accuracy | ±(2% rdg + 5dgts) |
Best AC Voltage Accuracy | ±(1.2% rdg + 5dgts) |
Best DC Voltage Accuracy | ±(0.5% rdg + 3dgts) |
Display Type | LCD |
Maximum Conductor Size | 35mm |
Battery Life | 40 (Backlight On) h, 200 (Backlight Off) h |
Jaw Capacity Busbars | 35mm |
Weight | 334g |
Safety Category Level | CAT IV, CAT lll |
Resistance Measurement Resolution | 100mΩ |
Dimensions | 225 x 77.1 x 38.6mm |
DC Voltage Measurement Resolution | 10mV |
Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance |
True RMS | Yes |
Minimum Operating Temperature | -10°C |
Height | 38.6mm |
AC Voltage Measurement Resolution | 10mV |
Width | 77.1mm |
Length | 225mm |
Maximum Operating Temperature | +50°C |
Safety Category Voltage | 300 V, 600 V |
Battery Type | AAA |
Safety Category | CAT III 600 V, CAT IV 300 V |
Best Resistance Measurement Accuracy | ±0.8% + 3 Digits |
Power Source | Battery |
Non-Contact Voltage Detector | Yes |
