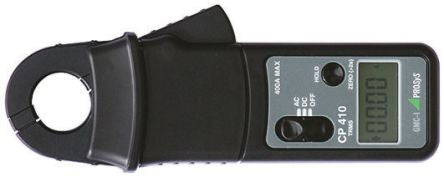

GMC-I Prosys CP410 Clamp Meter, Max Current 400A ac, 400A dc CAT III 300 V [CP410]; 705-1901
by GMC-I Prosys
0₫
Mã kho: 7051901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Model Number | CP410 |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1% rdg + 5dgts) |
| Clamp Meter Type | Current Clamp |
| Best AC Current Accuracy | ±(1% rdg + 5dgts) |
| Power Source | Battery |
| Length | 25mm |
| Width | 74mm |
| Safety Category | CAT III 300 V |
| Display Type | LCD |
| Maximum Operating Temperature | +50°C |
| Battery Type | 9V |
| Safety Category Voltage | 300V |
| Weight | 235g |
| Safety Category Level | CAT lll |
| Height | 194mm |
| Maximum Conductor Size | 25mm |
| Battery Life | 50 h |
| Jaw Capacity Busbars | 25mm |
| True RMS | Yes |
| Functions Measured | AC Current, DC Current |
| Dimensions | 25 x 74 x 194mm |
| Minimum Operating Temperature | 0°C |
