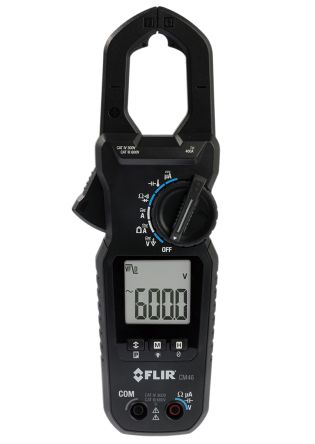

FLIR CM4X Clamp Meter, Max Current 400A ac, 60A dc CAT III 600V, CAT IV 300V [CM46]; 179-4696
by FLIR
0₫
Mã kho: 1794696
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 60kΩ |
| Model Number | CM4X |
| Best DC Current Accuracy | ±2 % |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±1.8 % |
| Best AC Voltage Accuracy | ±1 % |
| Best DC Voltage Accuracy | ±1 % |
| Jaw Capacity Busbars | 30mm |
| Maximum Conductor Size | 30mm |
| Length | 223mm |
| Width | 76mm |
| Non-Contact Voltage Detector | Yes |
| Height | 37mm |
| Minimum Operating Temperature | -10°C |
| Power Source | Battery |
| Maximum Operating Temperature | +50°C |
| Display Type | Backlit LCD |
| True RMS | Yes |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | AAA |
| Dimensions | 223 x 76 x 37mm |
| Absolute Maximum Temperature Measurement | +400 °C, +752 °F |
| Best Resistance Measurement Accuracy | ±1 % |
| Safety Category | CAT III 600V, CAT IV 300V |
| Best Temperature Measurement Accuracy | ±1 % |
