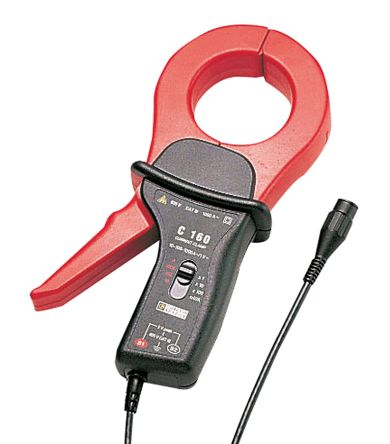

Chauvin Arnoux C160 Clampmeter, Max Current 1kA ac CAT III 600 V, CAT IV 300 V [P01120308]; 254-7882
0₫
Mã kho: 2547882
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Absolute Maximum AC Current Measurement | 1kA ac |
Model Number | C160 |
DC Current Measurement Resolution | 50µA dc |
Clamp Meter Type | Current |
Best AC Current Accuracy | ±1% +1 mV |
Dimensions | 216 x 111 x 45mm |
Functions Measured | AC Current |
Minimum Operating Temperature | -10°C |
Height | 45mm |
Maximum Conductor Size | 52mm |
Jaw Capacity Busbars | 30 x 5 mm, 50 x 5 mm |
Weight | 550g |
Safety Category Level | CAT IV, CAT lll |
Safety Category | CAT III 600 V, CAT IV 300 V |
Maximum Operating Temperature | +55°C |
Width | 111mm |
Length | 216mm |
Safety Category Voltage | 300 V, 600 V |
