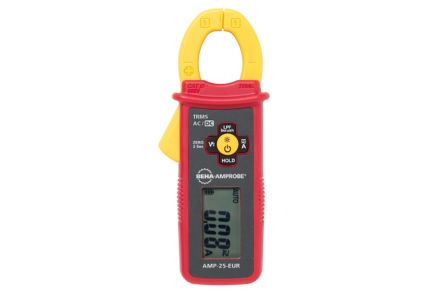

AMP-25-EUR, 300A AC/DC RMS MINI-CLAMP [AMP-25-EUR]; 186-5504
by Beha-Amprobe
0₫
Mã kho: 1865504
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 300A ac |
| Absolute Maximum DC Current Measurement | 300A dc |
| Model Number | AMP-25-EUR |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Clamp Meter Type | Current Clamp |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Non-Contact Voltage Detector | Yes |
| Width | 60mm |
| Length | 32mm |
| Maximum Conductor Size | 25mm |
| Battery Life | 20 h |
| Jaw Capacity Busbars | 25mm |
| Weight | 140g |
| Safety Category Level | CAT III |
| Battery Type | 2 x 1.5 V LR44 |
| Dimensions | 32 x 60 x 147mm |
| Functions Measured | AC Current, DC Current |
| Safety Category | CAT III 600 V |
| True RMS | Yes |
| Display Type | LCD |
| Maximum Operating Temperature | +30 ( 80% RH) °C, +40 ( 75% RH) °C, +50 ( 45% RH) °C |
| Minimum Operating Temperature | 0 ( 80% RH) °C, +30 ( 75% RH) °C, +40 ( 45% RH) °C |
| Height | 147mm |
| Safety Category Voltage | 600V |
| Power Source | Battery |
