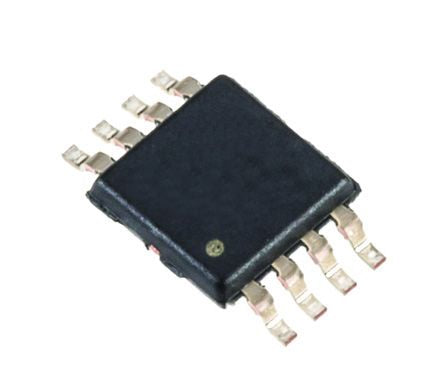

Texas Instruments LM2660MM/NOPB, Charge Pump Inverting 100mA 80 kHz 8-Pin, VSSOP [LM2660MM/NOPB]; 824-6778
0₫
Mã kho: 8246778
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Converter Type | Inverting |
| Maximum Output Current | 100mA |
| Maximum Switching Frequency | 80 kHz |
| Mounting Type | Surface Mount |
| Package Type | VSSOP |
| Pin Count | 8 |
| Typical Operating Supply Voltage | 1.5 → 5.5 V |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Height | 0.95mm |
| Length | 3.1mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Voltage | 5 V |
| Minimum Operating Supply Voltage | 1.5 V |
| Minimum Operating Temperature | -40 °C |
| Width | 3.1mm |
