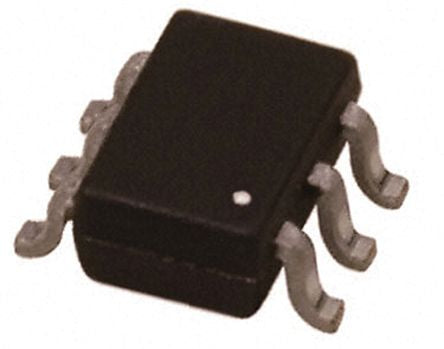

ON Semiconductor MAX1720EUTG, Charge Pump Inverting 100mA 21 kHz, -6 → 0.3 V 6-Pin, TSOP [MAX1720EUTG]; 121-6502
0₫
Mã kho: 1216502
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Converter Type | Charge Pump, Inverting |
| Maximum Output Current | 100mA |
| Maximum Switching Frequency | 21 kHz |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 6 |
| Typical Operating Supply Voltage | 1.15 → 6 V |
| Dimensions | 3.1 x 1.7 x 1mm |
| Height | 1mm |
| Length | 3.1mm |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Voltage | 0.3 V |
| Minimum Operating Supply Voltage | 1.5 V |
| Minimum Output Voltage | -6 V |
| Width | 1.7mm |
| Minimum Operating Temperature | -40 °C |
