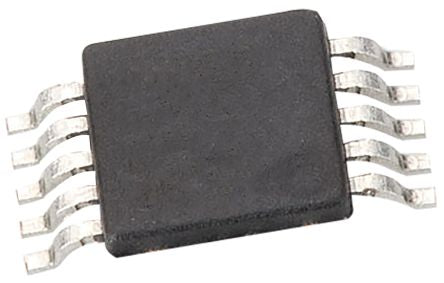

Microchip MCP1256-E/UN, Charge Pump Regulated 100mA 650 kHz 10-Pin, MSOP [MCP1256-E/UN]; 146-0202
by Microchip
0₫
Mã kho: 1460202
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Converter Type | Regulated |
| Maximum Output Current | 100mA |
| Maximum Switching Frequency | 650 kHz |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Dimensions | 3 x 3 x 0.95mm |
| Height | 0.95mm |
| Length | 3mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +125 °C |
| Maximum Output Voltage | 3.3 V |
| Minimum Operating Supply Voltage | 1.8 V |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
