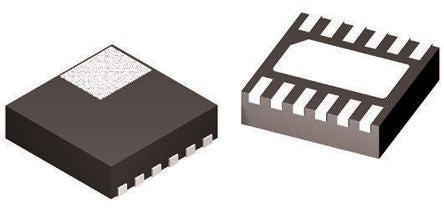

Linear Technology LTC3245IDE#PBF, Charge Pump Buck Boost 250mA 500 kHz, 2.5 → 5 V 12-Pin, DFN [LTC3245IDE#PBF]; 884-7002
0₫
Mã kho: 8847002
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Converter Type | Buck Boost |
| Maximum Output Current | 250mA |
| Maximum Switching Frequency | 500 kHz |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 12 |
| Typical Operating Supply Voltage | 12 V |
| Dimensions | 4 x 3 x 0.7mm |
| Height | 0.7mm |
| Length | 4mm |
| Maximum Operating Supply Voltage | 38 V |
| Maximum Operating Temperature | +125 °C |
| Maximum Output Voltage | 5 V |
| Minimum Operating Supply Voltage | 2.7 V |
| Width | 3mm |
| Minimum Output Voltage | 2.5 V |
| Minimum Operating Temperature | -40 °C |
