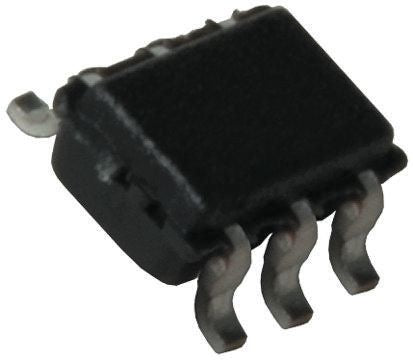

Linear Technology LTC1983ES6-3#TRMPBF, Charge Pump 100mA 900 kHz, -2.88 → -3.12 V 6-Pin, SOT-23 [LTC1983ES6-3#TRMPBF]; 858-0876
0₫
Mã kho: 8580876
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Converter Type | Charge Pump |
| Maximum Output Current | 100mA |
| Maximum Switching Frequency | 900 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Voltage | -3.12 V |
| Minimum Operating Supply Voltage | 2.3 V |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | -2.88 V |
