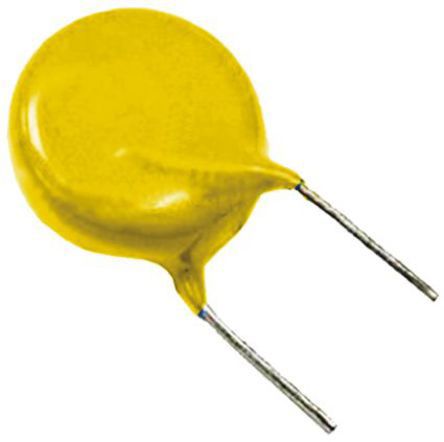

Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 300V ac ±20% Y5V Dielectric VY2 Series Series Through Hole [VY2222M31Y5VS63V7]; 133-5629
by Vishay
0₫
Mã kho: 1335629
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 nF |
| Voltage | 300 V ac |
| Mounting Type | Through Hole |
| Series | VY2 Series |
| Tolerance | ±20% |
| Dielectric | Y5V |
| Diameter | 8mm |
| Depth | 5mm |
| Height | 12mm |
| Dimensions | 8 (Dia.) x 5mm |
| Tolerance Minus | -0.2 |
| Capacitor Family | Single Layer |
| Terminal Type | Radial |
| Dielectric Material Family | Ceramic |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Suppression Class | X1, Y2 |
| Dissipation Factor | 0.025 |
