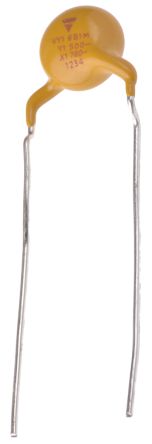

Vishay Single Layer Ceramic Capacitor SLCC 680pF 500V ac ±20% Y5U Dielectric VY1 Series Through Hole [VY1681M31Y5UQ6TV0]; 173-3588
by Vishay
0₫
Mã kho: 1733588
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 pF |
| Voltage | 500 V ac |
| Mounting Type | Through Hole |
| Series | VY1 |
| Tolerance | ±20% |
| Dielectric | Y5U |
| Diameter | 8mm |
| Depth | 5mm |
| Height | 11mm |
| Dimensions | 8 (Dia.) x 5mm |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.2 |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Radial |
