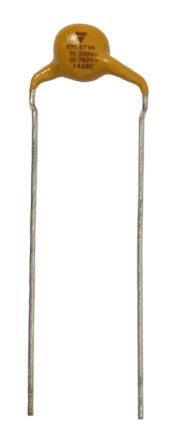

Vishay Single Layer Ceramic Capacitor SLCC 4.7nF 500 (Y1) V ac, 760 (X1) V ac ±20% Y5U Dielectric VY1 Series [VY1472M61Y5UC63V0]; 173-1294
by Vishay
0₫
Mã kho: 1731294
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 nF |
| Voltage | 500 (Y1) V ac, 760 (X1) V ac |
| Mounting Type | Through Hole |
| Series | VY1 |
| Tolerance | ±20% |
| Dielectric | Y5U |
| Diameter | 15.5mm |
| Depth | 5mm |
| Dimensions | 15.5 (Dia.) x 5mm |
| Temperature Coefficient | -56 %, +22 % |
| Tolerance Minus | -0.2 |
| Terminal Type | Radial |
| Tolerance Plus | 0.2 |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 0.025 |
| Suppression Class | X1, Y1 |
| Minimum Operating Temperature | -40°C |
| Capacitor Family | Single Layer |
