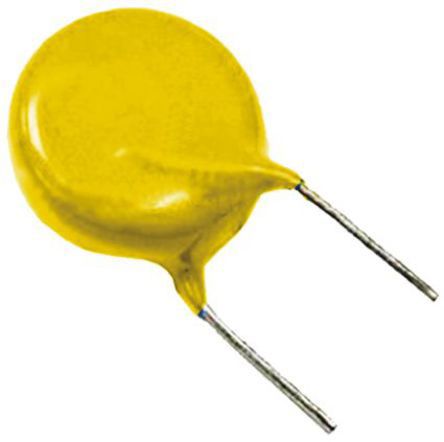

Vishay Single Layer Ceramic Capacitor (SLCC) 4.7nF 500V ac ±20% Y5V Dielectric VY1 Series Through Hole [VY1472M51Y5VQ63V0]; 173-1310
by Vishay
0₫
Mã kho: 1731310
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 nF |
| Voltage | 500 V ac |
| Mounting Type | Through Hole |
| Series | VY1 |
| Tolerance | ±20% |
| Dielectric | Y5V |
| Diameter | 13mm |
| Depth | 5.5mm |
| Height | 17mm |
| Dimensions | 13 (Dia.) x 5.5mm |
| Minimum Operating Temperature | -40°C |
| Suppression Class | X1, Y1 |
| Dissipation Factor | 0.025 |
| Dielectric Material Family | Ceramic |
| Tolerance Plus | 0.2 |
| Terminal Type | Radial |
| Maximum Operating Temperature | +125°C |
| Tolerance Minus | -0.2 |
| Capacitor Family | Single Layer |
