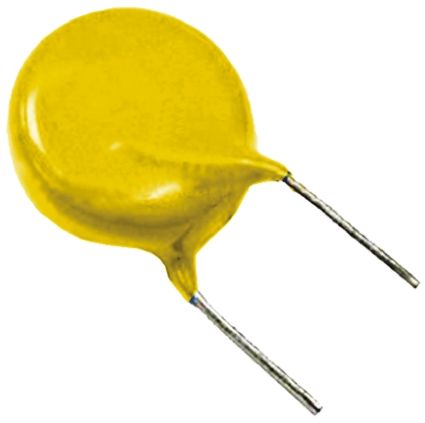

Vishay Single Layer Ceramic Capacitor SLCC 3.3nF 500V ac ±20% Y5U Dielectric VY1 Series Series Through Hole [VY1332M59Y5UG6TV0]; 736-8959
by Vishay
0₫
Mã kho: 7368959
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 3.3 nF |
Voltage | 500 V ac |
Mounting Type | Through Hole |
Series | VY1 Series |
Tolerance | ±20% |
Dielectric | Y5U |
Diameter | 15mm |
Depth | 5mm |
Height | 18mm |
Dimensions | 15 (Dia.) x 5mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -40°C |
Tolerance Minus | -0.2 |
Terminal Type | Through Hole |
Tolerance Plus | 0.2 |
