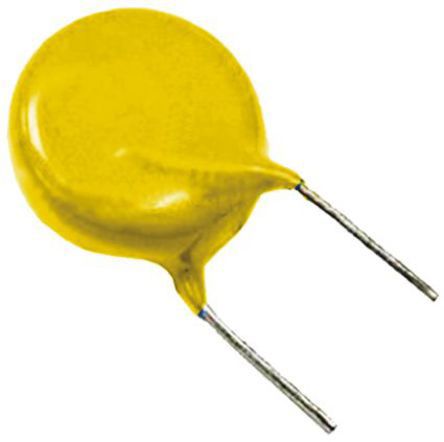

Vishay Single Layer Ceramic Capacitor (SLCC) 1nF 500V ac ±20% Y5V Dielectric VY1 Series Series Through Hole [VY1102M29Y5VQ63V0]; 133-5622
by Vishay
0₫
Mã kho: 1335622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1 nF |
| Voltage | 500 V ac |
| Mounting Type | Through Hole |
| Series | VY1 Series |
| Tolerance | ±20% |
| Dielectric | Y5V |
| Diameter | 7.5mm |
| Depth | 5.5mm |
| Height | 11.5mm |
| Dimensions | 7.5 (Dia.) x 5.5mm |
| Capacitor Family | Single Layer |
| Terminal Type | Radial |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 0.025 |
| Suppression Class | X1, Y1 |
| Minimum Operating Temperature | -40°C |
