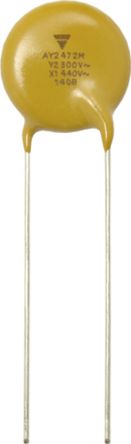

Vishay Single Layer Ceramic Capacitor (SLCC) 10nF 300V ac ±20% Y5V Dielectric AY2 Series Through Hole [AY2103M61Y5VS63L0]; 183-7414
by Vishay
0₫
Mã kho: 1837414
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 nF |
| Voltage | 300 V ac |
| Mounting Type | Through Hole |
| Series | AY2 |
| Tolerance | ±20% |
| Automotive Standard | AEC-Q200 |
| Dielectric | Y5V |
| Diameter | 15.5mm |
| Height | 6mm |
| Dimensions | 15.5 Dia. x 6mm |
| Maximum Operating Temperature | +125°C |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 0.025 |
| Suppression Class | Y2 |
| Minimum Operating Temperature | -55°C |
| Capacitor Family | Single Layer |
| Tolerance Plus | 0.2 |
| Tolerance Minus | -0.2 |
