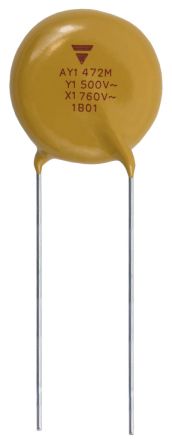

Vishay Single Layer Ceramic Capacitor (SLCC) 470pF 500V ac ±20% Y5U Dielectric AY1 Series Through Hole [AY1471M31Y5UC63L0]; 183-7389
by Vishay
0₫
Mã kho: 1837389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 pF |
| Voltage | 500 V ac |
| Mounting Type | Through Hole |
| Series | AY1 |
| Tolerance | ±20% |
| Automotive Standard | AEC-Q200 |
| Dielectric | Y5U |
| Diameter | 8mm |
| Height | 7mm |
| Dimensions | 8 Dia. x 7mm |
| Minimum Operating Temperature | -55°C |
| Capacitor Family | Single Layer |
| Suppression Class | Y1 |
| Maximum Operating Temperature | +125°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Ceramic |
| Tolerance Minus | -0.2 |
| Dissipation Factor | 0.05 |
