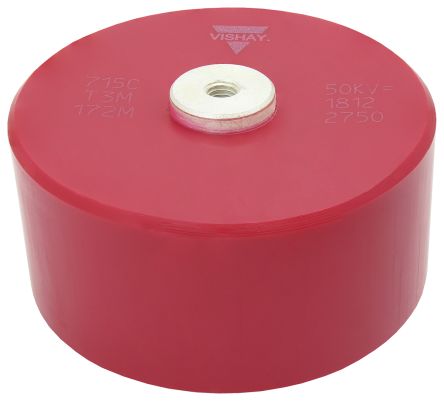

Vishay Single Layer Ceramic Capacitor (SLCC) 1.7nF 34 kVrms, 50 kV dc ±20% N4700 Dielectric 715C50KT Series Screw Mount [715C50KTD17M5]; 179-7465
by Vishay
0₫
Mã kho: 1797465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1.7 nF |
| Voltage | 34 kVrms, 50 kV dc |
| Mounting Type | Screw Mount |
| Series | 715C50KT |
| Tolerance | ±20% |
| Dielectric | N4700 |
| Diameter | 60mm |
| Height | 35mm |
| Dimensions | 60 Dia. x 35mm |
| Temperature Coefficient | -4700 ppm/K, ±1000 ppm/K |
| Tolerance Minus | -0.2 |
| Terminal Type | Screw |
| Maximum Operating Temperature | +85°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 0.002 |
| Suppression Class | Class 1 |
| Minimum Operating Temperature | -30°C |
| Capacitor Family | Single Layer |
