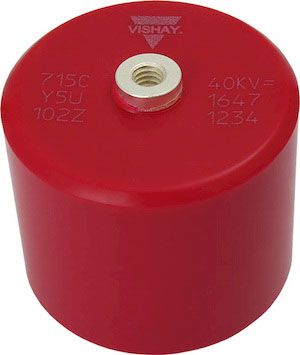

Capacitor Disc SLCC 715C 40KVDC 500PF Y5 [715C40DKT50]; 184-9579
by Vishay
0₫
Mã kho: 1849579
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 500 pF |
| Voltage | 14 kVrms, 40 kV dc |
| Mounting Type | Screw Mount |
| Series | 715C40DK |
| Tolerance | -20 → +80% |
| Dielectric | Y5U |
| Diameter | 26.7mm |
| Height | 34.5mm |
| Dimensions | 26.7 Dia. x 34.5mm |
| Maximum Operating Temperature | +85°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -30°C |
| Capacitor Family | Single Layer |
| Tolerance Plus | 0.8 |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 20 x 10^-3 |
| Suppression Class | Class 2 |
| Tolerance Minus | -0.2 |
