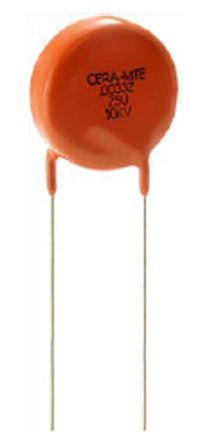

Vishay Single Layer Ceramic Capacitor (SLCC) 2.5nF 10kV dc -20 → +80% Z5U Dielectric 615R Series [615R100GAD25]; 131-1212
by Vishay
0₫
Mã kho: 1311212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.5 nF |
| Voltage | 10 kV dc |
| Series | 615R |
| Tolerance | -20 → +80% |
| Dielectric | Z5U |
| Diameter | 19.1mm |
| Depth | 8.9mm |
| Dimensions | 19.1 (Dia.) x 8.9mm |
| Tolerance Minus | -0.2 |
| Terminal Type | Radial |
| Capacitor Family | Single Layer |
| Maximum Operating Temperature | +105°C |
| Dissipation Factor | 0.02 |
| Tolerance Plus | 0.8 |
| Dielectric Material Family | Ceramic |
| Minimum Operating Temperature | -25°C |
