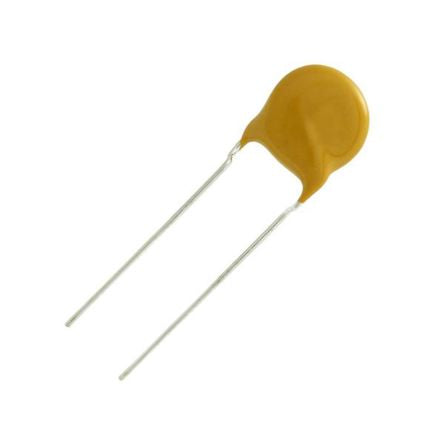

Vishay Single Layer Ceramic Capacitor SLCC 2.7nF 3kV dc ±10% X7R Dielectric 564R Series Through Hole [564R30TSD27]; 831-3212
by Vishay
0₫
Mã kho: 8313212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 2.7 nF |
Voltage | 3 kV dc |
Mounting Type | Through Hole |
Series | 564R |
Tolerance | ±10% |
Dielectric | X7R |
Diameter | 15.7mm |
Depth | 4.7mm |
Dimensions | 15.7 (Dia.) x 4.7 (D)mm |
Terminal Type | Radial |
Maximum Operating Temperature | +105°C |
Tolerance Plus | 0.1 |
Minimum Operating Temperature | -25°C |
Tolerance Minus | -0.1 |
