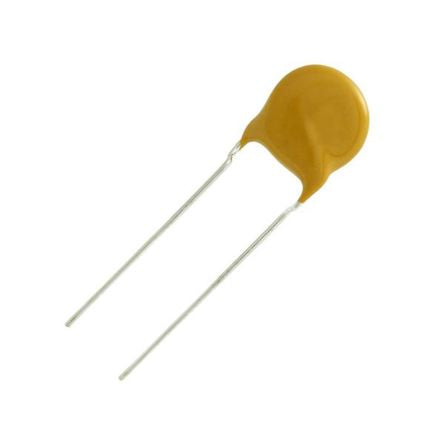

Vishay Single Layer Ceramic Capacitor SLCC 390pF 3kV dc ±20% X7R Dielectric 564R Series Through Hole [564R30GAT39]; 831-3199
by Vishay
0₫
Mã kho: 8313199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 390 pF |
| Voltage | 3 kV dc |
| Mounting Type | Through Hole |
| Series | 564R |
| Tolerance | ±20% |
| Dielectric | X7R |
| Diameter | 8.4mm |
| Depth | 4.4mm |
| Dimensions | 8.4 (Dia.) x 4.4 (D)mm |
| Maximum Operating Temperature | +105°C |
| Tolerance Plus | 0.2 |
| Tolerance Minus | -0.2 |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Radial |
