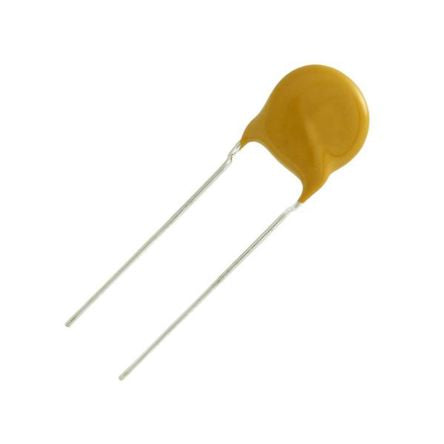

Vishay Single Layer Ceramic Capacitor SLCC 2.2nF 3kV dc ±20% Z5U Dielectric 564R Series Through Hole [564R30GAD22]; 831-3146
by Vishay
0₫
Mã kho: 8313146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 2.2 nF |
Voltage | 3 kV dc |
Mounting Type | Through Hole |
Series | 564R |
Tolerance | ±20% |
Dielectric | Z5U |
Diameter | 10.9mm |
Depth | 4.8mm |
Dimensions | 10.9 (Dia.) x 4.8 (D)mm |
Tolerance Plus | 0.2 |
Maximum Operating Temperature | +105°C |
Terminal Type | Radial |
Tolerance Minus | -0.2 |
Minimum Operating Temperature | -25°C |
