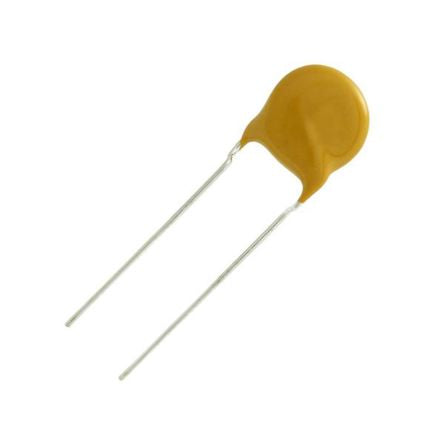

Vishay Single Layer Ceramic Capacitor SLCC 6.8pF 1kV dc ±0.5pF C0G, NP0 Dielectric 561R Series Through Hole [561R10TCCV68]; 831-2944
by Vishay
0₫
Mã kho: 8312944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 6.8 pF |
| Voltage | 1 kV dc |
| Mounting Type | Through Hole |
| Series | 561R |
| Tolerance | ±0.5pF |
| Dielectric | C0G, NP0 |
| Diameter | 6.4mm |
| Depth | 4mm |
| Dimensions | 6.4 (Dia.) x 4 (D)mm |
| Maximum Operating Temperature | +105°C |
| Tolerance Plus | +0.5pF |
| Minimum Operating Temperature | -55°C |
| Tolerance Minus | -0.5pF |
| Terminal Type | Radial |
