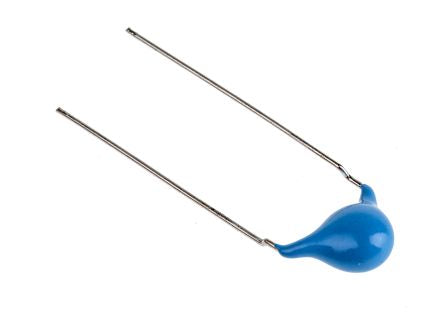

Murata Single Layer Ceramic Capacitor SLCC 1nF 1 kV dc, 400 (Y2) Vrms ac, 440 (X1) Vrms ac ±20% Ceramic Dielectric [DE2E3SA102MA3BY02F]; 172-7011
by Murata
0₫
Mã kho: 1727011
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1 nF |
| Voltage | 1 kV dc, 400 (Y2) Vrms ac, 440 (X1) Vrms ac |
| Mounting Type | Through Hole |
| Series | DE2 |
| Tolerance | ±20% |
| Dielectric | Ceramic |
| Diameter | 7mm |
| Depth | 5mm |
| Dimensions | 7 Dia. x 5mm |
| Temperature Coefficient | -55 → +20% |
| Capacitor Family | Single Layer |
| Terminal Type | Axial |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.025 |
| Suppression Class | X1, Y2 |
| Dielectric Material Family | Ceramic |
| Tolerance Plus | 0.2 |
