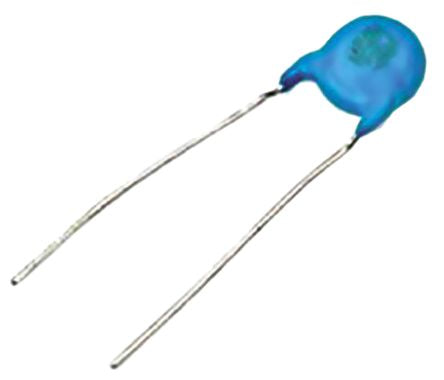

Murata Single Layer Ceramic Capacitor SLCC 1nF 250Vrms ±20% E Dielectric DE2 Series +85°C Max Op. Temp. [DE2E3KY102MN3AM02F]; 170-6429
by Murata
0₫
Mã kho: 1706429
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1 nF |
| Voltage | 250 Vrms |
| Series | DE2 |
| Tolerance | ±20% |
| Dielectric | E |
| Diameter | 8mm |
| Depth | 5mm |
| Dimensions | 8 (Dia.) x 5mm |
| Temperature Coefficient | -55 → +20% |
| Maximum Operating Temperature | +85°C |
| Dielectric Material Family | Ceramic |
| Minimum Operating Temperature | -25°C |
| Tolerance Plus | 0.2 |
| Terminal Type | Radial |
| Tolerance Minus | -0.2 |
| Suppression Class | X1, Y2 |
