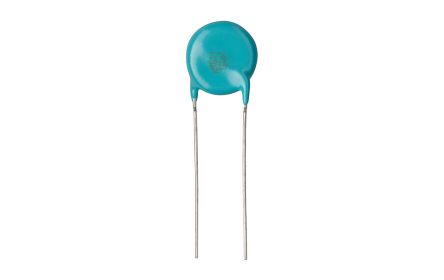

Murata Single Layer Ceramic Capacitor SLCC 15pF 1.5 kV dc, 500 V ac ±10% Ceramic Dielectric DE1 Series Through Hole [DE11XRA150KJ4BQ01F]; 172-7777
by Murata
0₫
Mã kho: 1727777
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 15 pF |
| Voltage | 1.5 kV dc, 500 V ac |
| Mounting Type | Through Hole |
| Series | DE1 |
| Tolerance | ±10% |
| Dielectric | Ceramic |
| Diameter | 6mm |
| Depth | 6mm |
| Dimensions | 6 Dia. x 6mm |
| Temperature Coefficient | -1000 → +350ppm/°C |
| Dielectric Material Family | Ceramic |
| Dissipation Factor | 0.025 |
| Suppression Class | X1, Y1 |
| Minimum Operating Temperature | -40°C |
| Tolerance Plus | 0.1 |
| Maximum Operating Temperature | +125°C |
| Tolerance Minus | -0.1 |
| Terminal Type | Axial |
| Capacitor Family | Single Layer |
