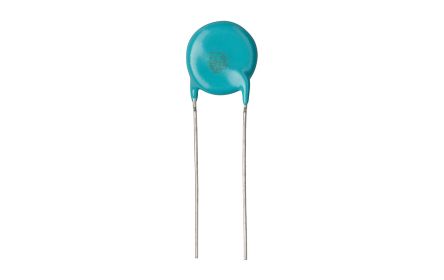

Murata Single Layer Ceramic Capacitor SLCC 15pF 1.5 kV dc, 500 V ac ±10% Ceramic Dielectric DE1 Series Through Hole [DE11XRA150KA4BQ01F]; 172-7775
by Murata
0₫
Mã kho: 1727775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 15 pF |
Voltage | 1.5 kV dc, 500 V ac |
Mounting Type | Through Hole |
Series | DE1 |
Tolerance | ±10% |
Dielectric | Ceramic |
Diameter | 6mm |
Depth | 6mm |
Dimensions | 6 Dia. x 6mm |
Temperature Coefficient | -1000 → +350ppm/°C |
Dielectric Material Family | Ceramic |
Dissipation Factor | 0.025 |
Tolerance Plus | 0.1 |
Capacitor Family | Single Layer |
Maximum Operating Temperature | +125°C |
Tolerance Minus | -0.1 |
Suppression Class | X1, Y1 |
Minimum Operating Temperature | -40°C |
Terminal Type | Axial |
