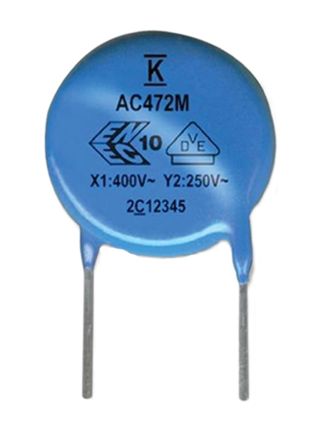

KEMET Single Layer Ceramic Capacitor SLCC 4.7nF 300V ac ±20% Y5U Dielectric C900 Series Through Hole [C961U472MZWDBA7317]; 173-4069
by KEMET
0₫
Mã kho: 1734069
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 nF |
| Voltage | 300 V ac |
| Mounting Type | Through Hole |
| Series | C900 |
| Tolerance | ±20% |
| Dielectric | Y5U |
| Diameter | 13mm |
| Depth | 5mm |
| Dimensions | 13 (Dia.) x 5mm |
| Temperature Coefficient | -55 → +20% |
| Maximum Operating Temperature | + 125°C |
| Tolerance Minus | -0.2 |
| Minimum Operating Temperature | - 40°C |
| Suppression Class | X1, Y2 |
| Dissipation Factor | 0.025 |
| Dielectric Material Family | Ceramic |
| Tolerance Plus | 0.2 |
| Capacitor Family | Single Layer |
