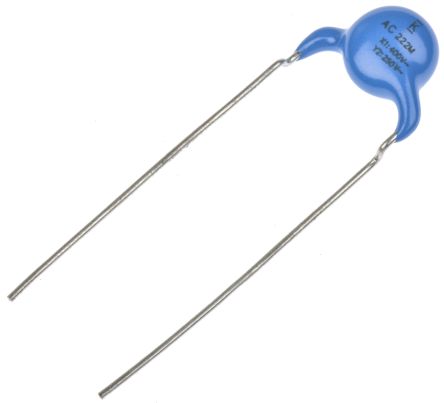

KEMET Single Layer Ceramic Capacitor SLCC 2.2nF 250V ac ±20% Y5V Dielectric C900 Series Through Hole [C901U222MYVDBA7317]; 169-6944
by KEMET
0₫
Mã kho: 1696944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 nF |
| Voltage | 250 V ac |
| Mounting Type | Through Hole |
| Series | C900 |
| Tolerance | ±20% |
| Dielectric | Y5V |
| Diameter | 7mm |
| Depth | 5mm |
| Dimensions | 7 (Dia.) x 5mm |
| Temperature Coefficient | -80 → +30% |
| Minimum Operating Temperature | - 40°C |
| Tolerance Minus | -0.2 |
| Dissipation Factor | 0.05 |
| Capacitor Family | Single Layer |
| Maximum Operating Temperature | + 125°C |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Ceramic |
| Suppression Class | X1, Y2 |
